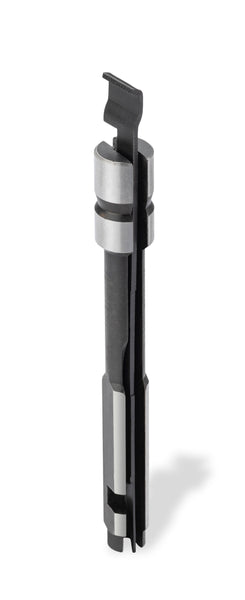

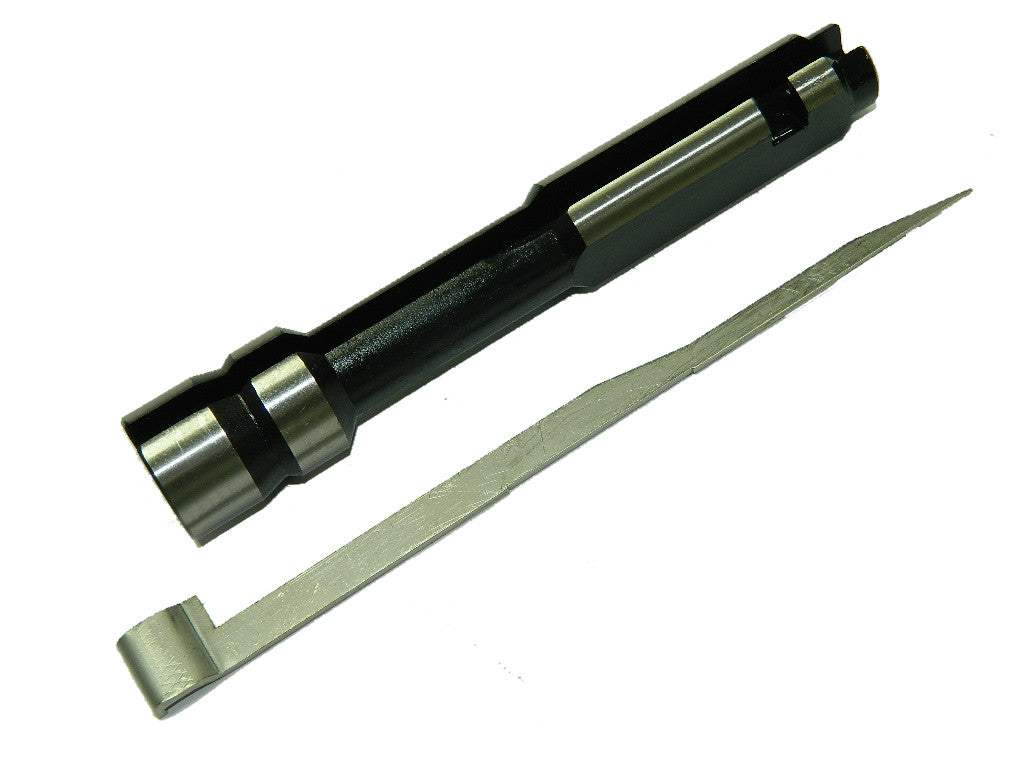

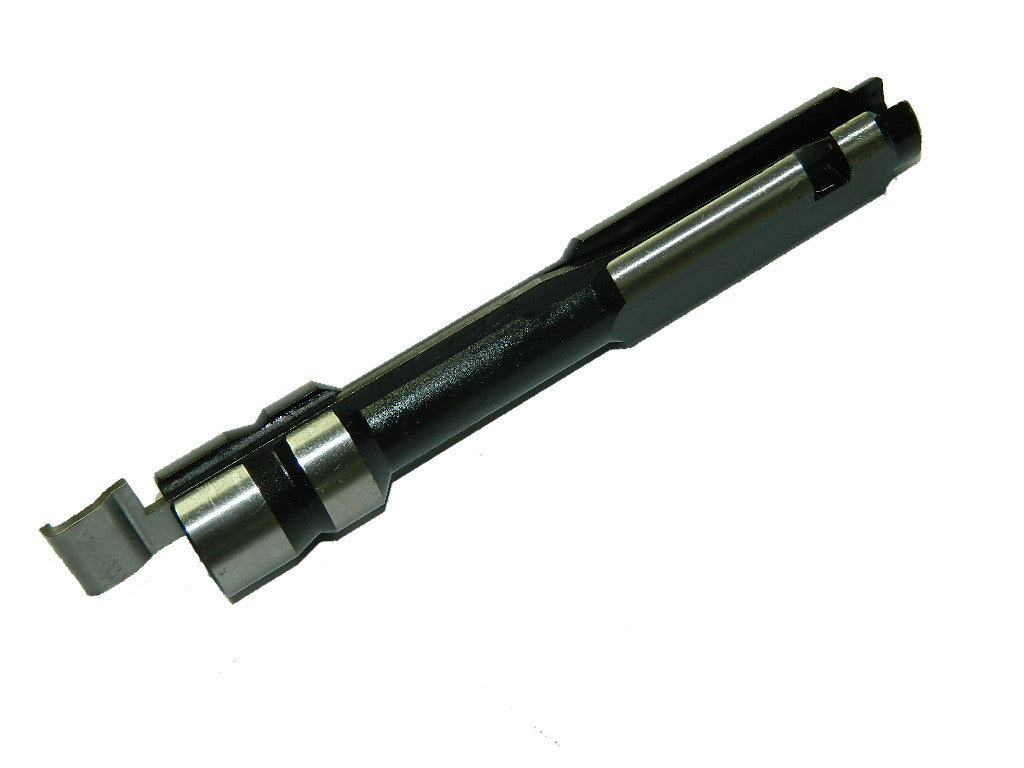

Mandrel Size 'ND'

£63.24

Mandrel Range 15.62 - 25.9 mm (0.615 - 1.020")

Short Series

Please see our Mandrels and Accessories catalogue for full details.

Diameter Range Mandrel (includes Wedge) Truing Sleeve Shoe (PT only)
mm Inch Hard Permanent Brass Cast Iron
15.62-16.38 0.615-0.645 HS615/4ND PT615/4ND ST 615 L1057B L1057C
16.38-17.15 0.645-0.675 HS645/4ND PT645/4ND ST 645
17.15-17.91 0.675-0.705 HS675/4ND PT675/4ND ST 675
17.91-18.80 0.705-0.740 HS705/4ND PT705/4ND ST 705
18.80-19.56 0.740-0.770 HS740/4ND PT740/4ND ST 740
Adaptor MA156/6
Stone Type ND
Replacement Wedge 10915

Diameter Range Mandrel (includes Wedge) Truing Sleeve Shoe (PT only)
Metric Inch Hard Permanent Brass Cast Iron
19.56-20.32 0.770-0.800 HS770/4ND PT770/4ND ST 770 L1058B L1058C
20.32-21.08 0.800-0.830 HS800/4ND PT800/4ND ST 800
21.08-21.97 0.830-0.865 HS830/4ND PT830/4ND ST 830
21.97-22.73 0.865-0.895 HS865/4ND PT865/4ND ST 865
22.73-23.49 0.895-0.925 HS895/4ND PT895/4ND ST 895
23.49-24.25 0.925-0.955 HS925/4ND PT925/4ND ST 925
24.25-25.14 0.955-0.990 HS955/4ND PT955/4ND ST 955
25.14-25.91 0.990-1.020 HS990/4ND PT990/4ND ST 990
Adaptor MA156/18
Stone Type ND
Replacement Wedge 10915
